Новый домкрат TyreON TPH40T-3 Air hydraulic jack 40 Tons - Minimum height 12,5 cm

The price is excluding VAT and delivery costs.
Capacity 40T Air-hydraulic
3-stage jack 40T - 20T - 10T
Lifting height 12.5 - 40.4 cm
Model Long chassis + Long bar
Weight - Total length 44 kg - 212 cm
Application Intensive commercial use
Delivery includes Extensions 75 + 45 mm
Hydraulic oil is filled


Long chassis + Long bar

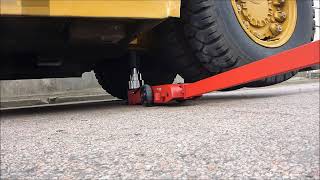

Pneumatic servicejack for the safe lifting of trucks, trailers, commercial vehicles, buses, construction and earth moving equipment, industrial machines, agricultural vehicles and forklift trucks.
With the low entry of 12.5 cm, almost every lifting point is accessible, and a large range of vehicles can be jacked up.With the jacking height of 40.4 cm, vehicles and machines with high axles can be raised.
TyreON TPH40T-3 air operated hydraulic jack 40 ton
Air operated hydraulic floor jack with 3 pistons rated for 40T maximum.
This long-floor jack requires compressed air from an air compressor to lift heavy loads up to 40 Tonne.
TyreON jacks are easy to operate and are featured with numerous safety options as a dead man’s joystick and a controlled lowering speed.
Quality - Technology - Air operated hydraulic jack
Quality air operated hydraulic jack with large rubber wheels and a long handle with rubber grips
First-class functional powder coating on entire construction
With a lowest jacking height of 15 cm and a narrow profile
With a safe hold-to-run joystick and an air hose-shortcut
The jack can be moved, manoeuvred, raised and dropped using the handle
The handle can be locked in 3 ways; 180º 90º 45º
The TPH40T-3 has a long 212 cm reach
Better load stability with broad base
The chassis made from 4.5 mm steel plate is giving perfect protection for the inner parts
In- and external hard-chrome cylinders resistant to corrosion and wear
All 3 cylinders are fitted with two seals to prevent any oil escape
Fast lifting by means of pneumatic high-pressure-pump
2 arms on the chassis-side for extensions and a screw cap for oil
2 extensions to close gap between the saddle of the jack and the jacking point
Air operated hydraulic jack intended for intensive commercial use
This durable heavy-duty jack is made for intensive use. With the solid construction and the application of thick sheet steel, the TPH40T-3 is highly resilient.
The jacks have a long life span due to the technical characteristics, the use of the best materials and quality checks during manufacturing.
To ensure optimum safety, the long floor jack stops and turns off immediately when the hold-to-run joystick is released.
The workshop jack can be used both outdoors and indoors under demanding conditions and can also be safely used on ground with a slight incline.
Metal contracts and expands with variations of temperatures. TyreON truck jacks will not fail in low or high temperatures.
Our Quality Centre carries out quality control checks on the jack during every stage of the production process.
The air operated hydraulic jack garage jack was tested at -25 °C to + 45 °C and dynamic and static off-centre load tests were conducted to ensure safety.
CE-approved for next current requirements.
EN 12100:2010 Safety of Machinery + EN 1494:2000+A1:2008 Mobile or Move-able Jacks
Functionality - Air hydraulic floor jack
Features air operated hydraulic jack 40 ton
Damage due to overload is prevented by an overpressure valve.
The TyreON TPH40T-3 lifting cylinders raise rapidly to the jacking point and also drop quickly
without load.
The no-return valves ensure a locked position for loads at all heights and a controlled smooth and
even fast lift rate under load.
Even with the heaviest load, a reduction valve ensures a smooth and shock-free descent.
As the cylinder, the hose and the oil reservoir are communicating, the oil cannot leak, even if the
jack is positioned on the side
The techniques and possibilities of the TyreON TPH40T-3 air operated hydraulic jack
Final testing - Warranty-TyreCARE
Any air operated hydraulic jack is total tested at the factory before being packed along the documentation, ready for dispatch!
The low entry workshop jacks are delivered with a one year warranty.
TyreCARE means that also after a year we are ready to assist you with technical support and information
Various models in stock

►
30T
2 stage
- min. 15 cm

- short chassis - portable
T
yreON TPH30T-2M portable air hydraulic jack 30 ton >>
►
30T
2 stage
 - min.
15 cm
 - short

chassis
TyreON TPH30T-2 hydraulic axle jack on air 30 ton >>
►
40T
2 stage

- min.
17.5 cm
 - short chassis
TyreON TPH40T-2 pneumatic servicejack 40 ton >>
►
40T  3
 stage
 - min. 1
2.5 cm
 - long chassis
TyreON TPH40T-3 air operated hydraulic jack 40 ton >>
►
60T
3 stage
 - min. 1
5 cm
 -
long chassis
TyreON TPH60T-3 air hydraulic floor jack 60 ton >>
►
60T  4
 stage
 -
 min.
15 cm
 -
long chassis
TyreON TPH60T-4 pneumatic hydraulic jack 60 ton >>
►
60T  1
 stage
 - min. 42 cm -
long chassis - 105 cm lift
TyreON TPH60T-1 pneumatic high li
ft jack 60 ton >>
►
80T  2
 stage
- min.
23
cm
-
long chassis
TyreON TPH80T-2 80 ton air hydraulic axlejack >>
TPH40T-3 Air hydraulic jack 40 Tons - Minimum height 12,5 cm
